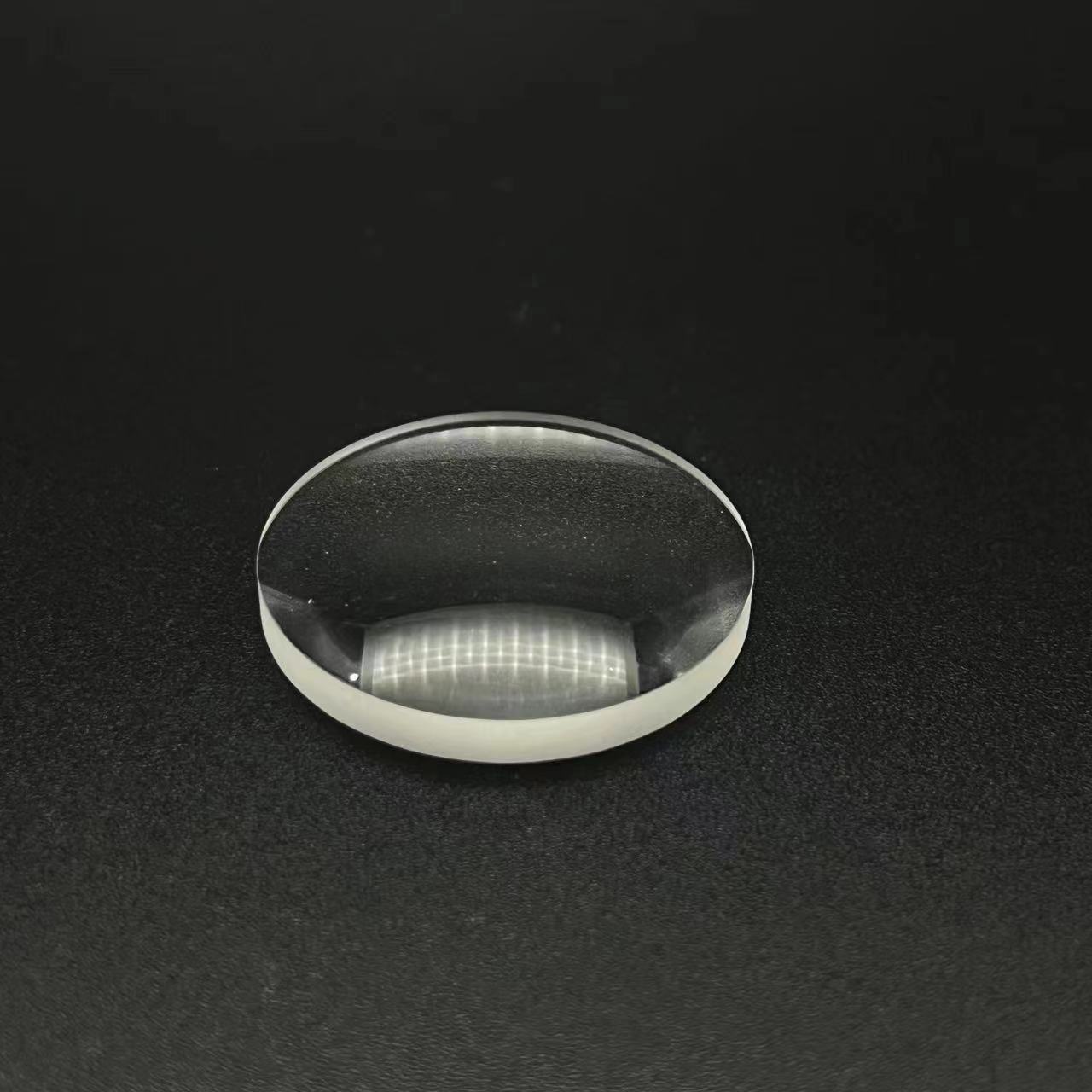

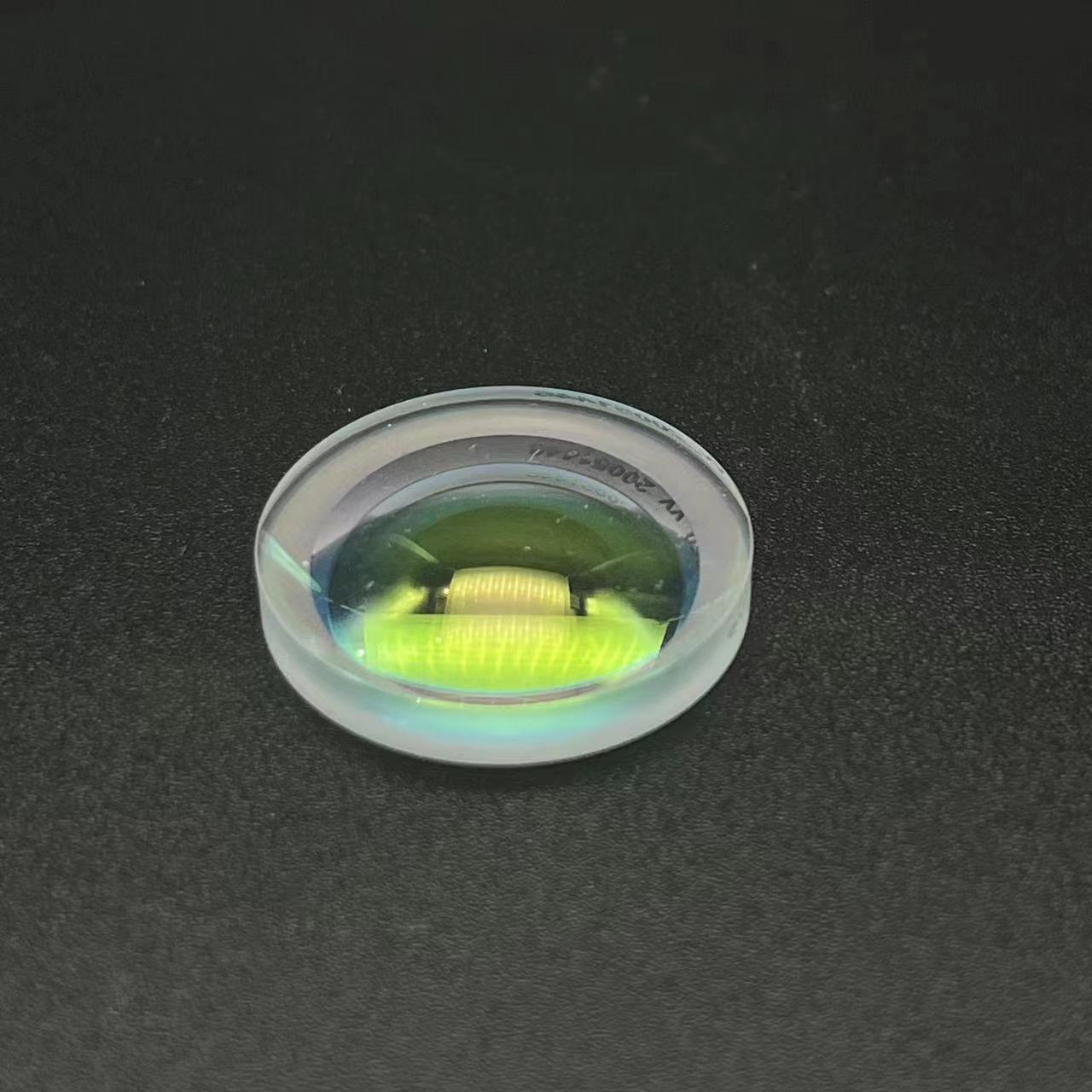

Laser Grade Aspherical Lens

Aspheric lenses deviate from a simple sphere shape to reduce aberrations and achieve better image quality. They’re used broadly in imaging applications, including camera and smartphone lenses.

Glass aspheric lens is also called condenser lens, mainly applicable for stage lighting, optical lighting system, etc. We bring in hot briquetting technology from Japan, with volume production ability, including aspheric lens which surface form error is within 100 micron.

Product categories

New Products

Product Details

Specification:

Material	BK7, B270 or PYREX
Diameter Range	10-300 mm
Diameter Tolerance	+0.00/-0.15 mm
Center thickness	+/-0.5%
Focus	+/-7%
Aspheric lens face form	checked by caliper
Surface finish: processing surface	x: λ/2; y: 2λ

Standard Products:

Part No.	Material	EFL	OD1	OD2	CT	ET
TCA101	B270	18.51	24		10.4	1.54
TCA102	PYREX	37.1	50		23	2.5
TCA103	PYREX	36.4	52		24	2
TCA104	B270	74.47	35	30.68	10.05	2.3
TCA105	PYREX	48	50		19	2
TCA106	PYREX	61.78	68.5		24.12	2
TCA107	B270	6.25	6.5		2.679	0.942
TCA108	PYREX	126.57	75		14.25	2.8
TCA109	B270	190.1	80		15.24	3.8

Note: Other size, material and coatings are available upon request.
